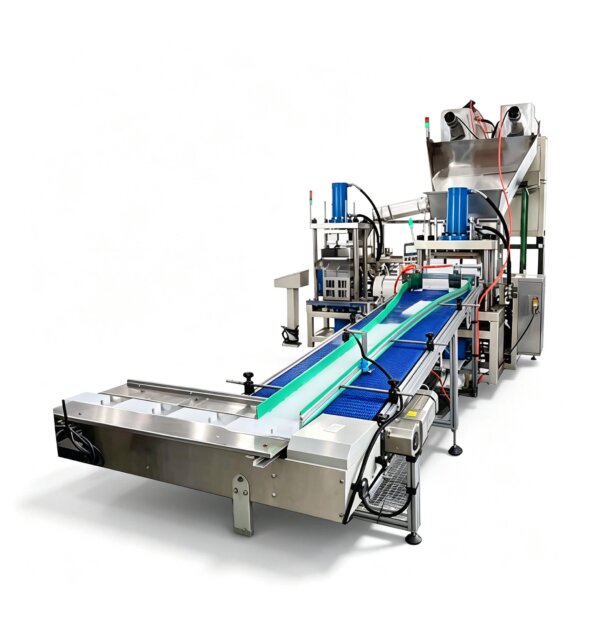

WA800 Dry Ice Block Auto Production Line
WAINEW WA800 dry‑ice block auto production line is customizable per client output and site conditions. It produces custom‑size, variable‑hardness dry‑ice slices and blocks for dry‑ice cleaning, food preservation, medical cold‑chain logistics, cryotherapy, stage fog effects and process cooling.
This automatic dry‑ice production line uses buffered hydraulic extrusion with PLC‑controlled hydraulics. Its WAINEW touch‑screen system supports one‑button start‑stop for low‑noise, high‑efficiency continuous manufacturing.
Engineered for heavy‑duty industrial use, WA800 features real‑time monitoring of cavity pressure, extrusion pressure and displacement to avoid overpressure and guarantee reliable hydraulic‑system safety.

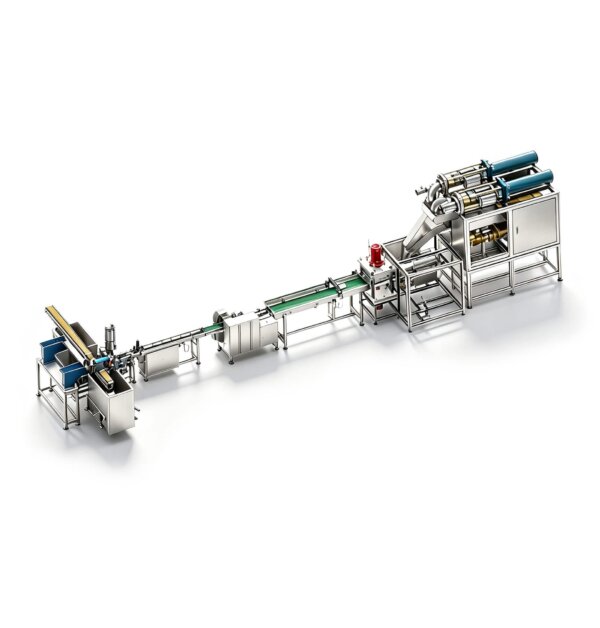

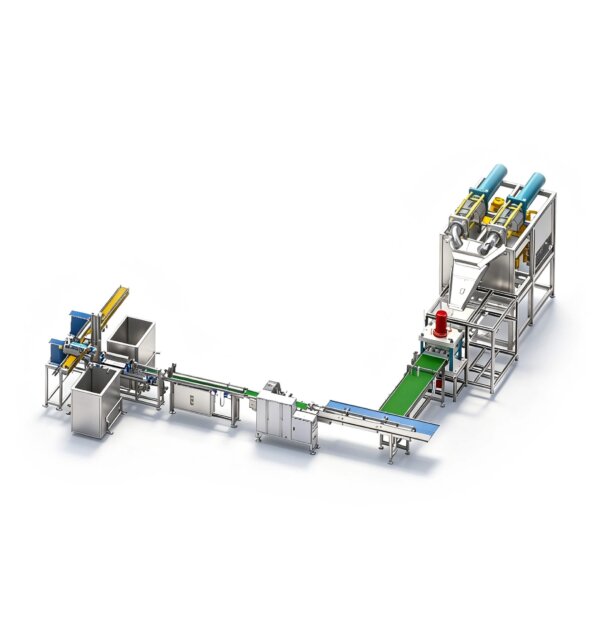

The WA800 automatic dry ice block production line features a complete set of dry ice pelletizer, reformer, convey system, packaging system and packing robot and its overall dimensions is subject to the whole production line configuration. The production capacity is customizable.
Compresses dry‑ice pellets into high‑density solid dry ice blocks of the size of 125*105 mm. Reduces sublimation loss for longer storage & transport, ideal for cold‑chain logistics and dry‑ice cleaning scenarios.
Equipped with PLC full‑automatic hydraulic control technology. It delivers low‑impact and low‑noise operation to guarantee long‑term high‑efficiency and stable equipment performance.
The electro‑hydraulic system comes with multiple safety alarm functions, which ensures safe and smooth operation of the WA800 dry ice block auto production line.
| Rated Output | Customizable |
|---|---|
| Dry Ice Block Density | ≥1400 kg/m³ (87.36 lb/ft³) |
| Dry Ice Block Size | 125 x 105 mm (4.92" x 4.13"), thickness customizable |
| Dimensions | Subject to the configuration of auto production line |
| Weight | Subject to the configuration of auto production line |
| Servo Motor | VEICHI / Hilectro |
| Power Supply | 380 V / 3 (50 / 60 HZ) |
| Rated Power | Subject to the configuration of auto production line |
| PLC | Mitsubishi FX PLC |
| Hydraulic Pump & Valve | Bosch Rexroth / CASSAPA |
| Hydraulic Piping System | Parker |
| Noise Level | Below 80 dB(A) |
Related products
PM1000-2H Dry Ice Pelletizer
WAINEW PM1000-2H dry‑ice pelletizer supports custom pellet‑formation molds for dry‑ice…
PDB85 Pellet Dry Ice Blaster
WAINEW PDB85 dry‑ice blasting machine brings advanced eco‑friendly industrial cleaning.…

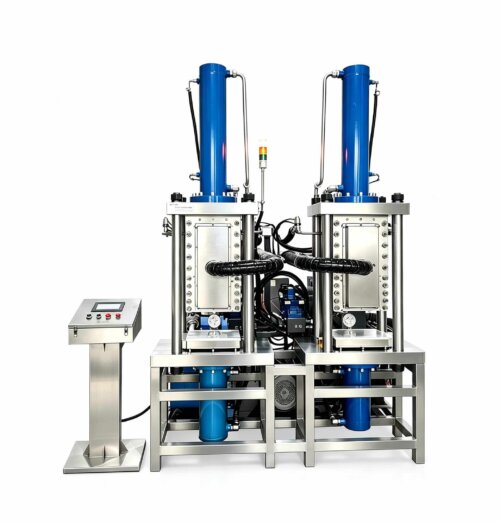

ZKJ005 Direct Dry Ice Block Maker
