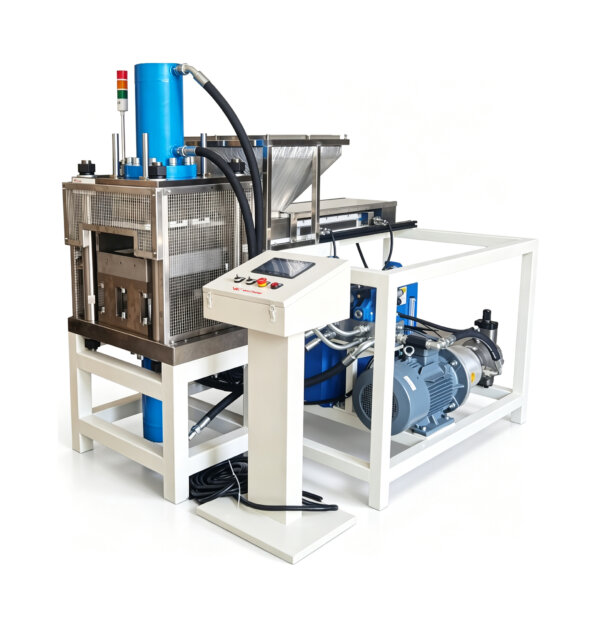

BR1500 Dry Ice Block Reformer
WAINEW BR1500 dry‑ice block reformer offers custom‑size dry‑ice blocks with adjustable hardness. It applies to dry‑ice cleaning, food preservation, medical cold‑chain logistics, cryotherapy, entertainment special‑effects and process cooling.
This industrial dry‑ice block making machine features buffered hydraulic extrusion and PLC automatic hydraulic control. The WAINEW touch‑control system supports one‑button start‑stop for low‑noise, long‑term stable production.
Engineered for heavy‑duty work, BR1500 adopts real‑time monitoring for cavity pressure, extrusion pressure and displacement to avoid overpressure and ensure safe hydraulic‑system performance.
The BR1500 dry ice block compactor features compact overall dimensions of 2100×1200×1900 mm while delivering high‑capacity output up to 1300~1500 kg per hour for on‑demand dry‑ice pellet production.
Compresses dry‑ice pellets into high‑density solid dry ice blocks of 500 ~ 800 g (1200 g is available for customization). Reduces sublimation loss for longer storage & transport, ideal for cold‑chain logistics and dry‑ice cleaning scenarios.
Supports adjustable moulds to produce dry‑ice blocks in multiple dimensions. Fits varied application demands including food preservation, special‑industry cooling and dry‑ice blast cleaning.
Adopts buffered hydraulic extrusion structure with PLC control. Delivers steady pressing force, low‑noise operation and long‑term reliable performance for continuous dry‑ice block production.
| Dimensions | 2100 x 1200 x 1900 mm (82.68" x 47.24" x 74.8") |
|---|---|
| Dry Ice Block Density | ≥1400 kg/m³ (87.36 lb/ft³) |
| Dry Ice Block Weight | 500 ~ 800 g (17.64 ~ 28.22 oz, 1.2 kg customizable) |
| Hydraulic Oil Tank Capacity | 200 L |
| Hydraulic Piping System | Parker |
| Hydraulic Pump & Valve | Bosch Rexroth / CASSAPA |
| Noise Level | Below 80 dB(A) |
| PLC | Mitsubishi FX PLC |
| Power Supply | 380 V / 3 (50 / 60 HZ) |
| Rated Output | 1300 ~ 1500 kg/hr (2866 ~ 3307 lbs/hr) |
| Rated Power | 11 kw |
| Servo Motor | VEICHI / Hilectro |
| Weight | 1660 kg (3660 lbs) |
