PM200-2 Dry Ice Pelletizer
WAINEW dry ice pelletizer PM200-2 supports custom pellet‑formation molds for dry ice pellets of varied sizes, hardness and specs. It fits dry ice cleaning, food preservation, cold‑chain transport and dry‑ice block reforming applications.
This dry ice pellet machine uses buffered hydraulic extrusion molding with PLC automatic hydraulic control. Equipped with user‑friendly WAINEW touch‑control system for one‑button start‑stop, it runs with low impact and low noise for stable long‑time performance.
Built per heavy‑duty equipment standards, PM200-2 features real‑time cavity pressure, extrusion pressure and displacement monitoring. It avoids cavity overpressure to guarantee reliable, safe hydraulic‑system operation.
The PM200-2 dry ice pellet maker features compact overall dimensions of 1500×1250×1750 mm while delivering high‑capacity output up to 400~500 kg per hour for on‑demand dry‑ice pellet production.
Boasts a liquid carbon‑dioxide‑to‑dry‑ice conversion ratio of ≥42 %, improving raw‑material utilization and lowering your operational costs for dry‑ice manufacturing.
Equipped with moisture‑proof stainless‑steel cabinet, this industrial dry‑ice making machine reduces operating noise down to 76 dB for quieter factory‑site production.
| Rated Output | 400~500 kg/hr (882~1102 lbs/hr) |
|---|---|
| Dry Ice Pellet Size | Ø3～18mm |
| Dimensions | 1500 × 1250 × 1750 mm (59.06" x 49.21" x 68.9") |
| Weight | 1680 kg (3704 lbs) |
| CO₂ Supply Pressure Range | 14 ~ 21 bar (203.5 ~ 304.58 psi) |
| Conversion Ratio of Liquid Co₂ to Dry Ice | ≥42% |
| Servo Motor | VEICHI / Hilectro |
| Power Supply | 380 V / 3 (50 / 60 HZ) |
| Rated Power | 15 kw |
| PLC | Mitsubishi FX PLC |
| Hydraulic Pump & Valve | Bosch Rexroth / SUN |
| Hydraulic Piping System | Parker |
| Hydraulic Oil Tank Capacity | 225 L |
| Noise Level | Below 80 dB(A) |
Related products

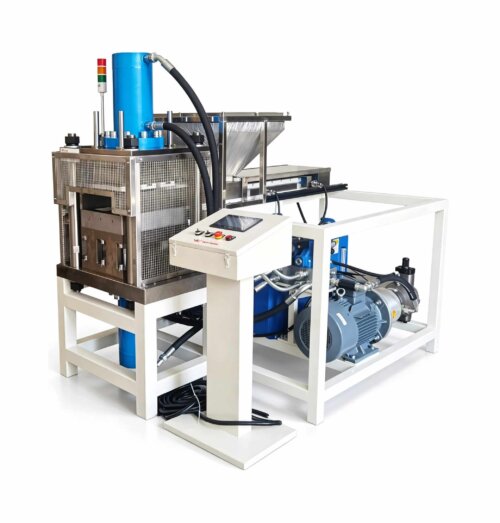

BR1500 Dry Ice Block Reformer
