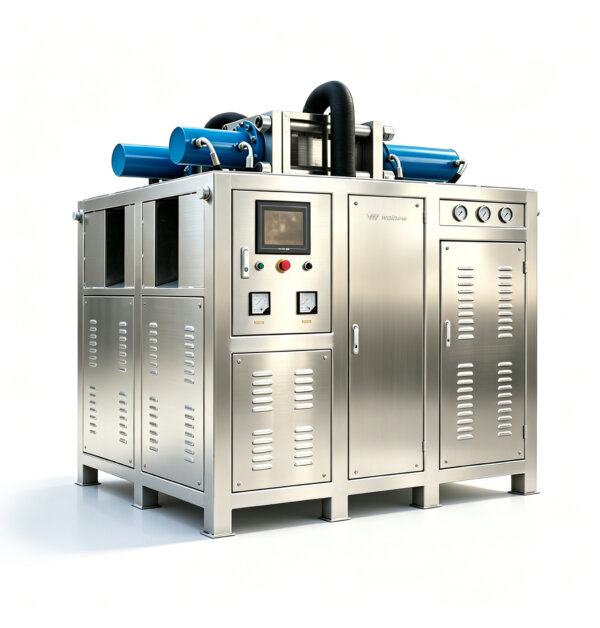

BM600 Direct Dry Ice Block Maker
WAINEW BM600 direct dry‑ice block maker produces custom‑hardness dry‑ice slices & blocks. It fits dry‑ice cleaning, food preservation, medical cold‑chain logistics, cryotherapy, entertainment special‑effects and process cooling.
This industrial dry‑ice block making machine uses buffered hydraulic extrusion and PLC automatic hydraulic control. Its WAINEW touch‑control panel supports one‑button start‑stop for low‑noise, long‑term stable production.
Built for heavy‑duty operation, BM600 features real‑time monitoring of cavity pressure, extrusion pressure and displacement to avoid overpressure and guarantee hydraulic‑system safety.
The BM600 dry ice block maker features compact overall dimensions of 2000×1400×1800 mm while delivering high‑capacity output up to 250~400 kg per hour for on‑demand dry‑ice pellet production.
Compresses dry ice snow into high‑density solid dry ice blocks of 250 ~ 1000 g. Reduces sublimation loss for longer storage & transport, ideal for cold‑chain logistics and dry‑ice cleaning scenarios.
Capable of producing dry ice blocks of varied density and weight per customer requirements, widely applied for food preservation, cold‑chain transportation and multiple other industrial uses.
Equipped with PLC full‑automatic hydraulic control technology. It delivers low‑impact and low‑noise operation to guarantee long‑term high‑efficiency and stable equipment performance.
The electro‑hydraulic system comes with multiple safety alarm functions, which ensures safe and smooth operation of the BM600 dry ice block maker.
| Rated Output | 250 ~ 400 kg/hr (551 ~ 882 lbs/hr) |
|---|---|
| Dry Ice Block Density | ≥1400 kg/m³ (87.36 lb/ft³) |
| Dry Ice Block Size | 125 x 105 mm (4.92" x 4.13"), thickness customizable |
| Dimensions | 1500 x 1400 x 1530 mm (59.06" x 55.12" x 60.24") |
| Weight | 1600 kg (3527 lbs) |
| Servo Motor | VEICHI / Hilectro |
| Power Supply | 380 V / 3 (50 / 60 HZ) |
| Rated Power | 2 × 7.5 kw |
| PLC | Mitsubishi FX PLC |
| Hydraulic Pump & Valve | Bosch Rexroth / CASSAPA |
| Hydraulic Piping System | Parker |
| Hydraulic Oil Tank Capacity | 330 L |
| Noise Level | Below 80 dB(A) |
