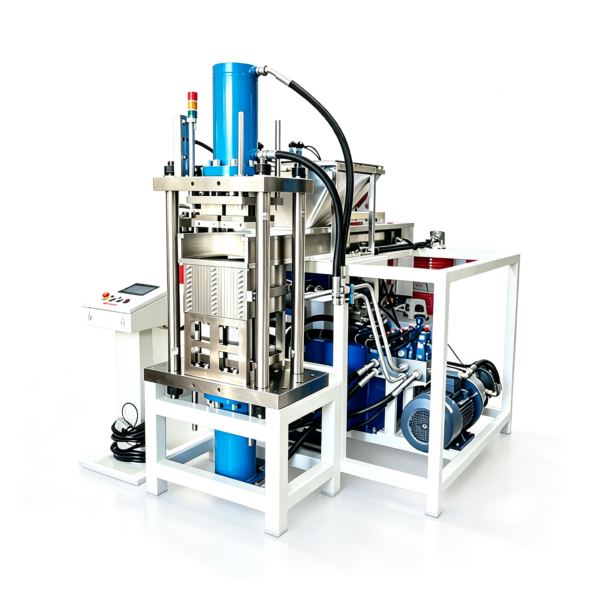

BR005 Dry Ice Block Reformer
WAINEW BR005 dry‑ice block reformer delivers custom‑sized dry‑ice blocks with varied hardness. It suits dry‑ice cleaning, food preservation, medical cold‑chain logistics, cryotherapy and entertainment special‑effect applications.
This industrial dry‑ice block making machine uses buffered hydraulic extrusion and PLC‑based automatic hydraulic control. Its WAINEW touch‑control system supports one‑button start‑stop for low‑noise, long‑term stable production.
Built for heavy‑duty usage, BR005 features real‑time monitoring for cavity pressure, extrusion pressure and displacement to avoid overpressure and ensure safe hydraulic‑system performance.

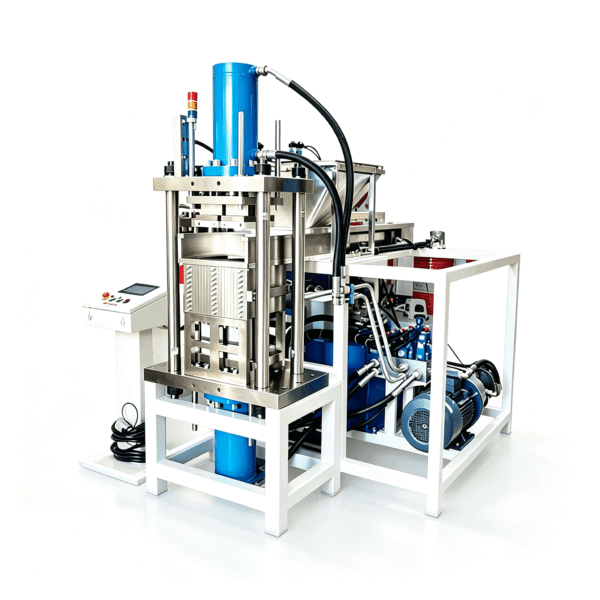

The BR005 dry ice block press features compact overall dimensions of 2000×1400×1800 mm while delivering high‑capacity output up to 1500~2000 kg per hour for on‑demand dry‑ice pellet production.

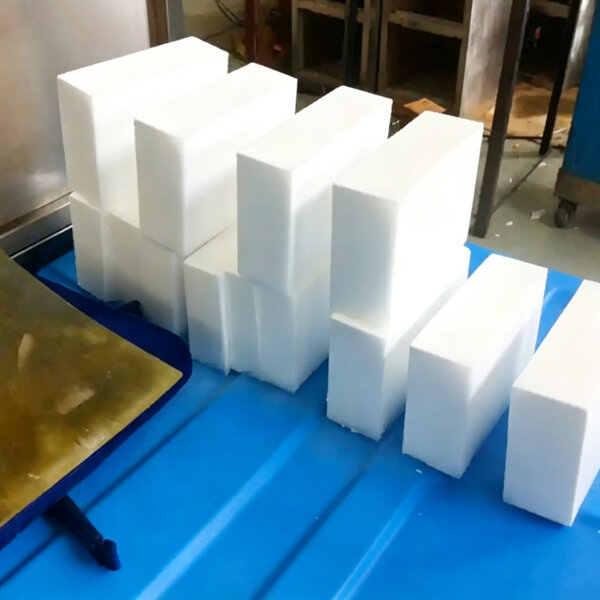

Compresses dry ice pellets into high‑density solid dry ice blocks of up to 5 kg. Reduces sublimation loss for longer storage & transport, ideal for cold‑chain logistics and dry‑ice cleaning scenarios.
Supports adjustable moulds to produce dry‑ice blocks in multiple dimensions. Fits varied application demands including food preservation, special‑industry cooling and dry ice blast cleaning.
Adopts buffered hydraulic extrusion structure with PLC control. Delivers steady pressing force, low‑noise operation and long‑term reliable performance for continuous dry ice block production.
| Rated Output | 1500 ~ 2000 kg/hr (3307 ~ 4409 lbs/hr) |
|---|---|
| Dry Ice Block Weight | 5 kg (11 lbs) |
| Dry Ice Block Density | ≥1400 kg/m³ (87.36 lb/ft³) |
| Dimensions | 2000 x 1400 x 1800 mm (78.74" x 55.12" x 70.87") |
| Weight | 2500 kg (5512 lbs) |
| Servo Motor | VEICHI / Hilectro |
| Power Supply | 380 V / 3 (50 / 60 HZ) |
| Rated Power | 11 kw |
| PLC | Mitsubishi FX PLC |
| Hydraulic Pump & Valve | Bosch Rexroth / CASSAPA |
| Hydraulic Piping System | Parker |
| Hydraulic Oil Tank Capacity | 220 L |
| Noise Level | Below 80 dB(A) |
