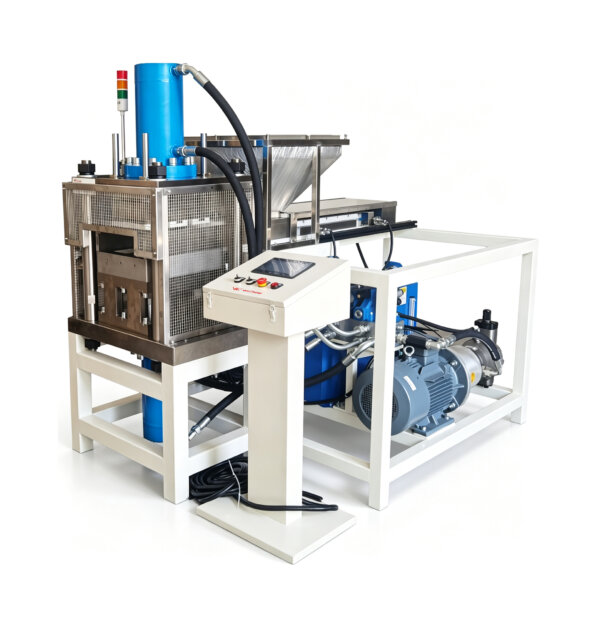

BR1000 Dry Ice Block Reformer
WAINEW BR1000 dry‑ice block reformer supports custom‑spec dry‑ice blocks of varied sizes and hardness. It fits dry‑ice cleaning, food preservation, medical cold‑chain logistics, cryotherapy, entertainment special‑effects and process cooling.
This heavy‑duty dry‑ice block making machine applies buffered hydraulic extrusion with PLC automatic hydraulic control. Its WAINEW touch‑control system enables one‑button start‑stop for low‑noise, stable long‑run production.
Built for industrial scenarios, BR1000 features real‑time monitoring for cavity pressure, extrusion pressure and displacement to prevent overpressure and guarantee reliable hydraulic‑system safety.
The BR1000 dry ice block reformer features compact overall dimensions of 2000×1400×1800 mm while delivering high‑capacity output up to 500~1200 kg per hour for on‑demand dry‑ice pellet production.
Compresses dry‑ice pellets into high‑density solid dry ice blocks of 250 ~ 800 g. Reduces sublimation loss for longer storage & transport, ideal for cold‑chain logistics and dry‑ice cleaning scenarios.
Supports adjustable moulds to produce dry‑ice blocks in multiple dimensions. Fits varied application demands including food preservation, special‑industry cooling and dry‑ice blast cleaning.
Adopts buffered hydraulic extrusion structure with PLC control. Delivers steady pressing force, low‑noise operation and long‑term reliable performance for continuous dry‑ice block production.
| Rated Output | 520 ~ 1000 kg/hr (1146 ~ 2205 lbs/hr) |
|---|---|
| Dry Ice Block Density | ≥1400 kg/m³ (87.36 lb/ft³) |
| Dry Ice Block Weight | 250 ~ 800 g (8.82 ~ 28.22 oz) |
| Dimensions | 1500 x 1000 x 2000 mm (59.06" x 39.37" x 78.74") |
| Weight | 1360 kg (2998 lbs) |
| Servo Motor | VEICHI / Hilectro |
| Power Supply | 380 V / 3 (50 / 60 HZ) |
| Rated Power | 11 kw |
| PLC | Mitsubishi FX PLC |
| Hydraulic Pump & Valve | Bosch Rexroth / CASSAPA |
| Hydraulic Piping System | Parker |
| Hydraulic Oil Tank Capacity | 200 L |
| Noise Level | Below 80 dB(A) |
