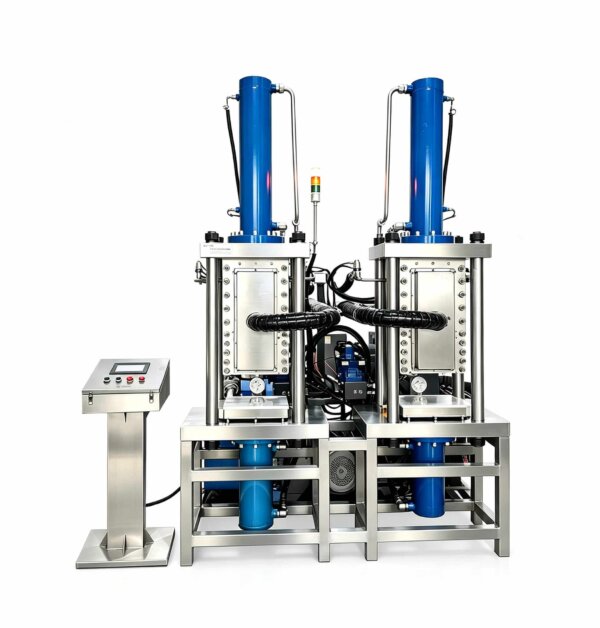

BM500 Direct Dry Ice Block Maker

ZKJ005 Direct Dry Ice Block Maker

WAINEW ZKJ005 direct dry‑ice block maker delivers custom‑hardness dry‑ice slices and blocks. It suits dry‑ice cleaning, food preservation, medical cold‑chain logistics, cryotherapy, entertainment special‑effects and process cooling.

This industrial dry‑ice block making machine uses buffered hydraulic extrusion and full‑automatic PLC hydraulic control. Its WAINEW touch‑control panel supports one‑button start‑stop for low‑noise, long‑term stable production.

Built for heavy‑duty use, ZKJ005 features real‑time monitoring of cavity pressure, extrusion pressure and displacement to prevent overpressure and secure reliable hydraulic‑system safety.

WAINEW
Categories: , Tags: , Brand:
Share your impression
Compact Size & High Production Output
+

The ZKJ005 dry ice block reformer features compact overall dimensions of 1800×1500×2800 mm while delivering high‑capacity output up to 1000~1500 kg per hour for on‑demand dry‑ice pellet production.

High‑Density Dry Ice Block Molding
+

Compresses dry‑ice pellets into high‑density solid dry ice blocks of up to 5000 g. Reduces sublimation loss for longer storage & transport, ideal for cold‑chain logistics and dry‑ice cleaning scenarios.

PLC Full‑Automatic Hydraulic Control System
+

Equipped with PLC full‑automatic hydraulic control technology. It delivers low‑impact and low‑noise operation to guarantee long‑term high‑efficiency and stable equipment performance.

Multi‑Level Safety Alarm for Electro‑Hydraulic System
+

The electro‑hydraulic system comes with multiple safety alarm functions, which ensures safe and smooth operation of the BM600 dry ice block maker.

Rated Output

1000 ~ 1150 kg/hr (2205 ~ 2535 lbs/hr)

Dry Ice Block Density

≥1400 kg/m³ (87.36 lb/ft³)

Dry Ice Block Size

250 ×140 × (50 ~ 210) mm (9.84" × 5.52" × (1.97" ~ 8.27"))

Dimensions

1800 x 1500 x 2800 mm(70.87" x 59.06" x 110.24")

Weight

2200 kg (4850 lbs)

Servo Motor

VEICHI / Hilectro

Power Supply

380 V / 3 (50 / 60 HZ)

Rated Power

11 kw

PLC

Mitsubishi FX PLC

Hydraulic Pump & Valve

Bosch Rexroth / CASSAPA

Hydraulic Piping System

Parker

Hydraulic Oil Tank Capacity

200 L

Noise Level

Below 80 dB(A)
